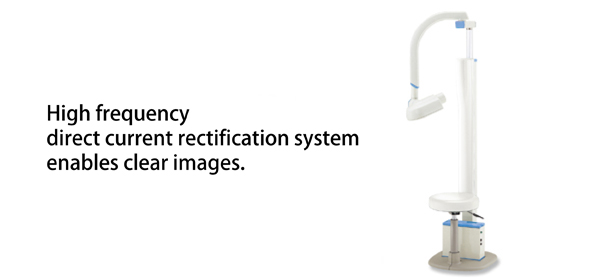

Dentnavi

dentnavi top image

specifications
Item
Specifications
Medical equipment endorcemetn number 21300BZZ00190000
Type XD33
High pressure generator direct current
X-ray tube D-0711SB
X-ray tube focus 0.7X0.7mm
Tube voltage 60-70kV
Tube current 4mA, 7mA
Exposure time 0.01-3.2seconds
Total filtration over 2.1.. aluminum equivalent
Inside diameter of cone 54mm
Distance between focus and the tip of radiation tube 200mm
Power requirements AC100V 50/60Hz
Power consumption 1.2kVA
Weight 40kg
Dimensions 10 mins ambient temparature
Vertical stroke of head 650mm
Height of head 865-1515mm
Vertical stroke of chair 200mm
Height of chair 437-637mm
*The product specifications vary depending on the area of purchace.
Please contact our international buisiness division department for more information.
